MyOSL 4.0 personal dosimetry

4 Element Dosimeter

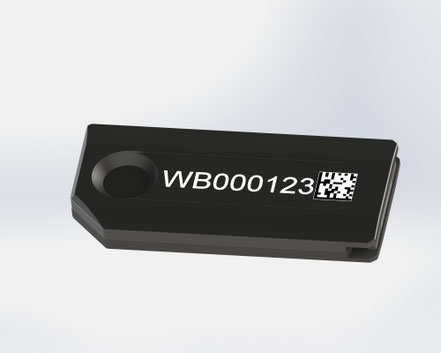

Our 4-element OSL dosimeter is equipped with three distinct Hp(10) filters, enabling a highly accurate flat energy response for Hp(10) across a broad energy spectrum ranging from 16 keV up to several MeV. In addition to Hp(10), it provides reliable estimates for Hp(0.07) and Hp(3) dose quantities, covering a wide range of radiation protection needs.

Measuring just 49 x 23 mm, this dosimeter ranks among the smallest 4-element passive dosimeters worldwide, making it ideal for discreet personal dosimetry.

Each dosimeter is uniquely identified using a Data Matrix code and an embedded RFID chip (optional).

Dose response range: from 0.05 mSv up to 10 Sv*

Designed with the same dimensions as the Panasonic TLD card, this dosimeter allows users to reuse existing Cs-137 irradiators and Panasonic magazines with minimal modifications—ensuring cost-effective upgrades for existing dosimetry setups.

myOSLraser 4.0

The myOSLraser 4.0 is the core unit of our 4-element OSL dosimetry system, designed for precise and efficient personal radiation monitoring. This automatic OSL reader is optimized for evaluating 4-element dosimeters and/or single-element dosimeters, commonly used for extremity and eye lens dosimetry.

Compact, user-friendly, and built to the highest quality standards, the myOSLraser 4.0 seamlessly combines the reading and erasing functions in one integrated device. With a manual loading capacity of one dosimeter, it offers a streamlined and reliable solution for laboratories and facilities with moderate dosimeter throughput needs.

For enhanced performance and scalability, the myOSLraser 4.0 can be upgraded with the myOSLautomatic 50, an automatic unit capable of handling up to 50 dosimeters per batch. Additionally, up to two myOSLraser 4.0 units can be integrated into the myOSL 4000 system, supporting high-volume processing of up to 3,500 dosimeters with sorting or 4,000 without sorting.

Whether used as a standalone device or as part of a large-scale dosimetry system, the myOSLraser 4.0 provides a flexible, scalable, and high-throughput OSL solution for modern personal dosimetry applications.

myOSLautomatic 50

The myOSLraser 4.0 can be effortlessly upgraded to a fully automatic system, enabling the processing of up to 50 myOSL dosimeters per loading cycle. This upgrade significantly increases throughput and efficiency, making it ideal for facilities with higher dosimetry workloads.

The automated system includes 10 magazines, each capable of holding 50 myOSL dosimeters, allowing for continuous, hands-free operation. This modular design supports streamlined workflows and reduces manual handling, improving both speed and accuracy in OSL dosimeter evaluation.

With this upgrade, the myOSLraser 4.0 becomes a powerful, medium-capacity OSL solution for personal, extremity, and eye lens dosimetry—ideal for radiation safety labs, hospitals, and monitoring services.
